Power up faster with up to 120 kW charging performance. Dual CCS2 support for reliable charging wherever you need it.

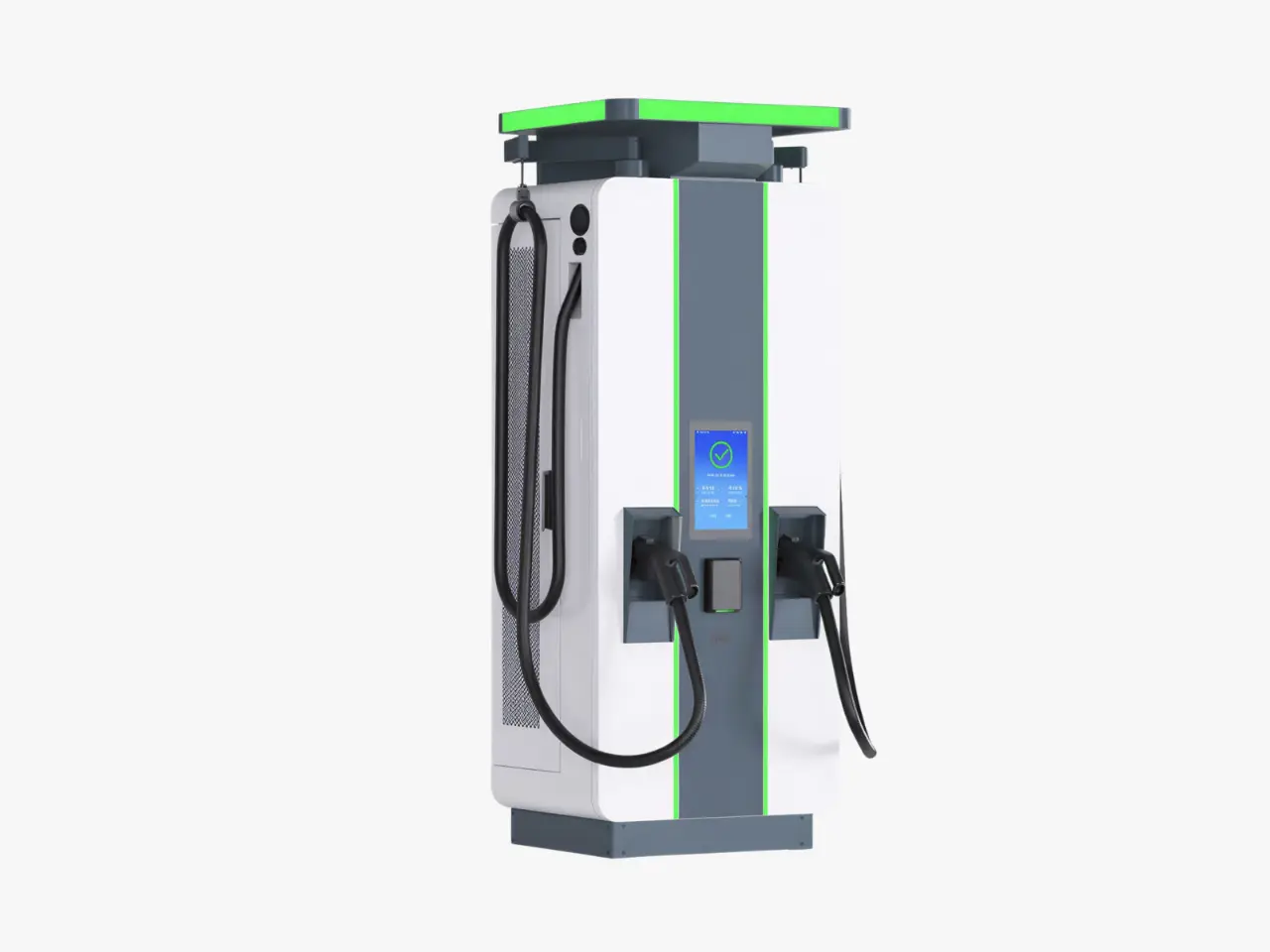

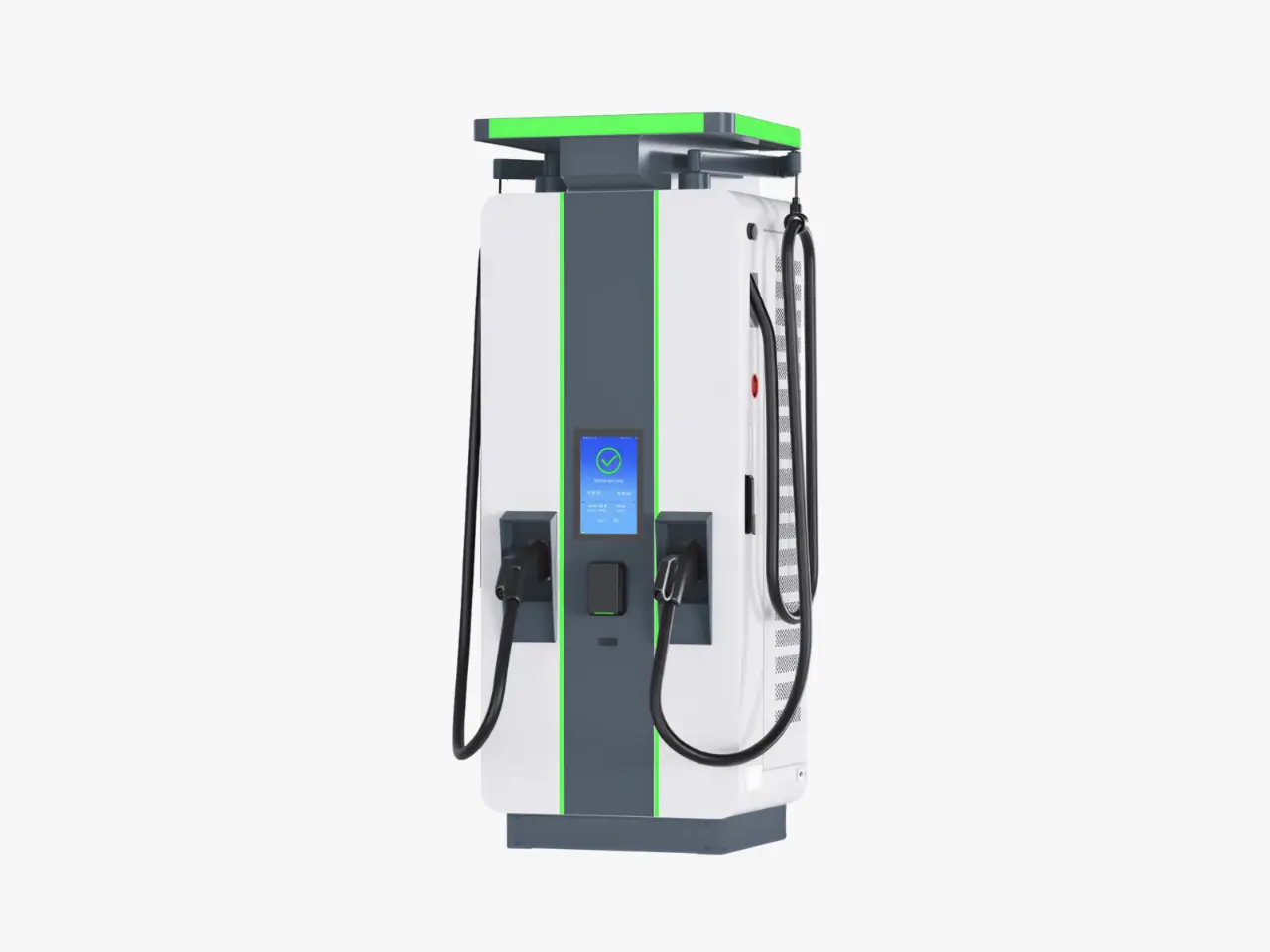

A fast DC electric vehicle charger with a maximum output power of 120 kW, supporting two CCS2 charging connectors. It is suitable for charging stations, office buildings, shopping centers, hotels, and commercial parking areas.
The charger is designed for easy operation through a 12.1-inch touchscreen and supports user authentication via RFID card, application, password, and optional credit card. It also supports management system connectivity through Ethernet, 3G/4G, Wi-Fi, and OCPP.
The unit also features a charging cable management system, cooling system, and comprehensive safety protection, making it suitable for businesses requiring fast, stable, and commercial-ready EV charging.
Product Highlights
➤ High Performance Reliable and stable operation
➤ OCPP Support Optional OCPP 1.6 / 2.0.1 protocol support
➤ Multiple Connectivity Options Optional Ethernet, 4G, and Wi-Fi connectivity
➤ Charging Cable Management Integrated charging cable management system
➤ OTA Support Supports Over-the-Air system updates
Designed for Various Environments
The charger is designed to support operation in a wide range of environments and provide durability for field use.
➤ Operating temperature: -25°C to 55°C
➤ Storage temperature: -40°C to 70°C
➤ Relative humidity: 5% to 95%, non-condensing
➤ Operating altitude: up to 2,000 meters
This enables stable, safe, and continuous operation across various installation environments.
Specifications
- Input Voltage : 400Vac ±15%, 50/60Hz, L1+L2+L3+N+PE
- Input Current : 185A
- Output Interface : CCS2 + CCS2
- Output Power : Up to 120kW
- Output Current : 0–402A
- Output Voltage : 200–1000Vdc
- Power Factor : ≥0.99 at load above 50%
- Efficiency : 95% at rated output power
